10mm Probe 5MHz 225mm Ultrasonic Paint Thickness Gauge

Name: 10mm Probe 5MHz 225mm Ultrasonic Paint Thickness Gauge
Brand: HCATM
Price: 1 USD

Cheap 10mm Probe 5MHz 225mm Ultrasonic Paint Thickness Gauge for sale

Brand Name : HCATM

Model Number : HU853

Place of Origin : XIAN

MOQ : 1

Payment Terms : L/C, D/A, Western Union, MoneyGram, T/T, D/P

Supply Ability : PIECE/WEEK

Delivery Time : 3 to 7 working days after payment

Packaging Details : Carton

Contact Now

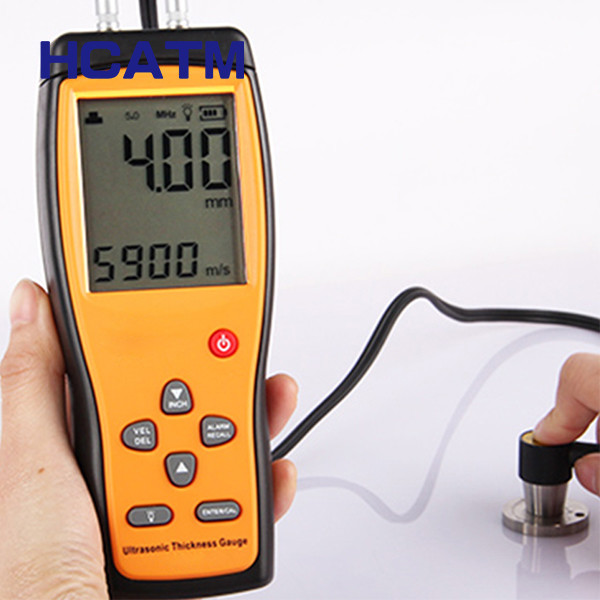

HU853 Ultrasonic Thickness Gauge

Ultrasonic thickness gauge is based on the principle of ultrasonic pulse reflection for thickness measurement. When the ultrasonic pulse emitted by the probe reaches the interface of the material through the measured object, the pulse is reflected back to the probe by accurately measuring the time the ultrasonic wave travels in the material. Measure the thickness of the material.

Technical Parameters

Economic model

Measuring range	1.2- 225mm
Measurement error	± (1%H+0.1) mm
Resolution	Thickness 0.1mm
Sound speed range	1000-9999m/s
Working frequency	5MHz
Range of working temperature	0°C -45°C
Probe working temperature range	Normal temperature type 0~60°C
Lower limit of pipe measurement	φ10mm probe: φ20 *3mm (steel)
Power supply	1.5VAA *3 battery

High-precision model

Measuring range	1.0~300mm
Measurement error	±(1%H+0.1) mm
Resolution	Thickness 0.01mm
Sound speed range	1000-9999m/s
Working frequency	5MHz
Range of working temperature	0°C -45°C
Probe working temperature range	Normal temperature type 0~60°C
Lower limit of pipe measurement	φ10mm probe: φ20 *3mm (steel)
Power supply	1.5VAA *3 battery

10mm Probe 5MHz 225mm Ultrasonic Paint Thickness Gauge

Product Tags:

Ultrasonic Paint Thickness Gauge

225mm Ultrasonic Thickness Gauge

5MHz Ultrasonic Thickness Gauge

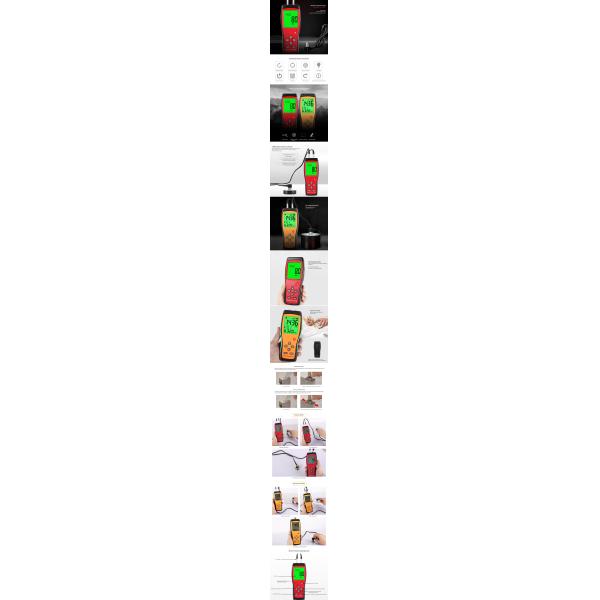

10mm Probe 5MHz 225mm Ultrasonic Paint Thickness Gauge Images
